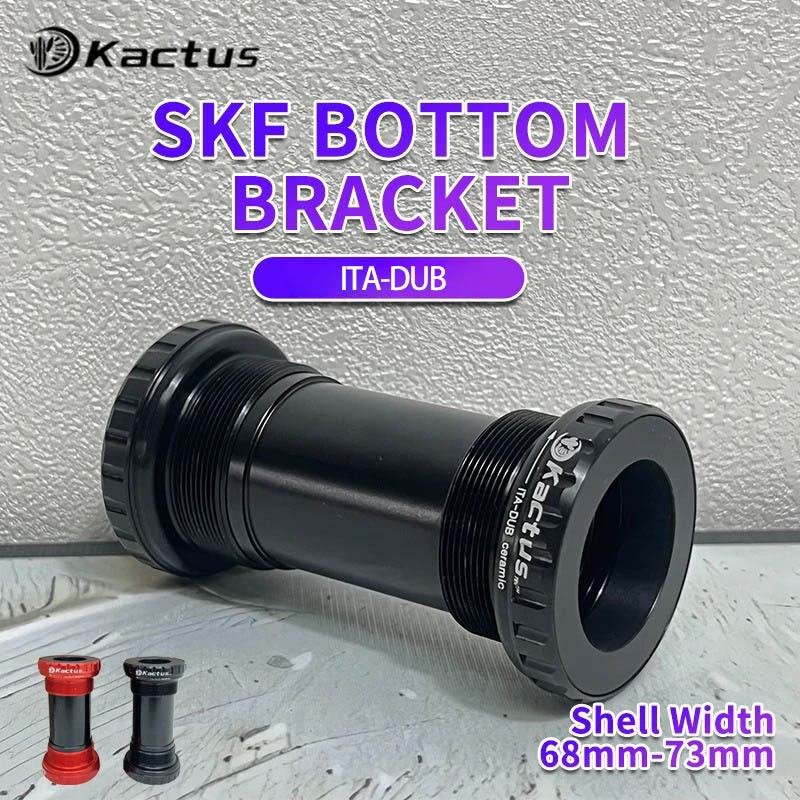

ITA29 BB Bike Central Movement 36mm Italian Thread Sealed Shaft Fit for Sram Dub Bottom Bracket Ceramic road Bicycle Accessories
Maintenance of bearings
* Recommend professional bike work shop rebuild .
* Normally do not need remove bottom bracket from bike frame.
* Please follow the recommend maintenance instruction
Please follow the steps to maintain the bottom bracket for a longer lasting use.
1. Remove the black plastic side cover of the bottom bracket.
2. Clean the bearing surface.
3. Remove the rubber side cover from the bearing with a knife or thin sheet.
4. Use industrial alcohol to clean bearing rollers and cages.
5. After cleaning, please fully inject the bearing grease into the bearing to fill all the gaps.
6. Reset the rubber cover , and then coat the outer surface of the bearing with waterproof grease.
7. Reset the black plastic cover of the bottom bracket and apply waterproof grease to the surface of the side cover.
8.Complete the maintenance.
When to maintain
Riding in wet and muddy conditions requires bearing maintenance every 1000-3000 kms
Riding in a clean and dry environment requires maintenance every 5,000 kms
Brand:KACTUS TECH
Name:Bicycle Bottom Bracket
Model Number:SKF ITA DUB

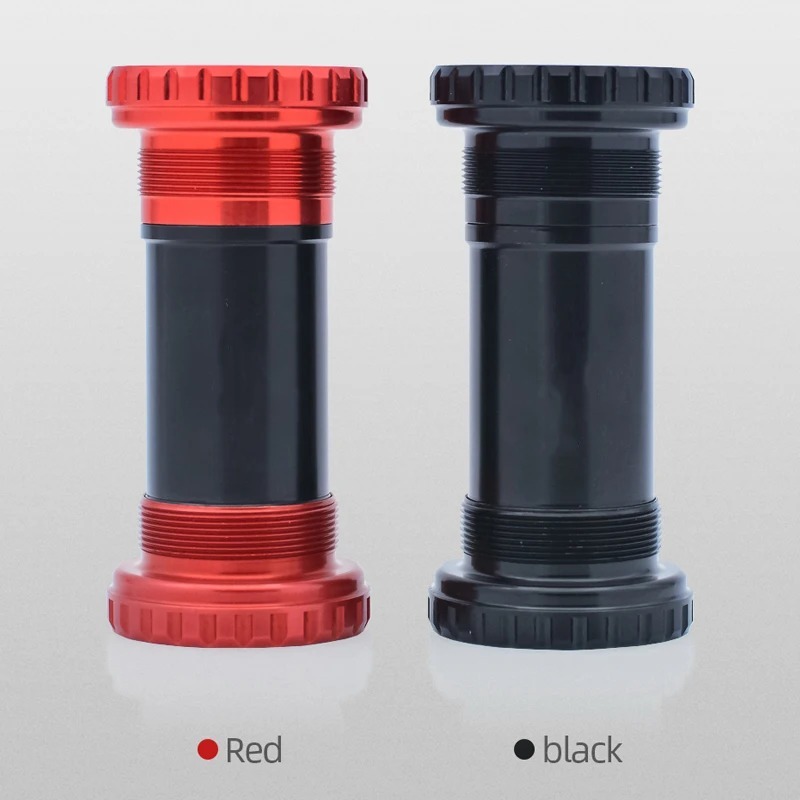

Color:Black ,Red
Material:Aluminum Alloy,Ceramic Palin
Weight :About 80g(Weight does not include accessories)

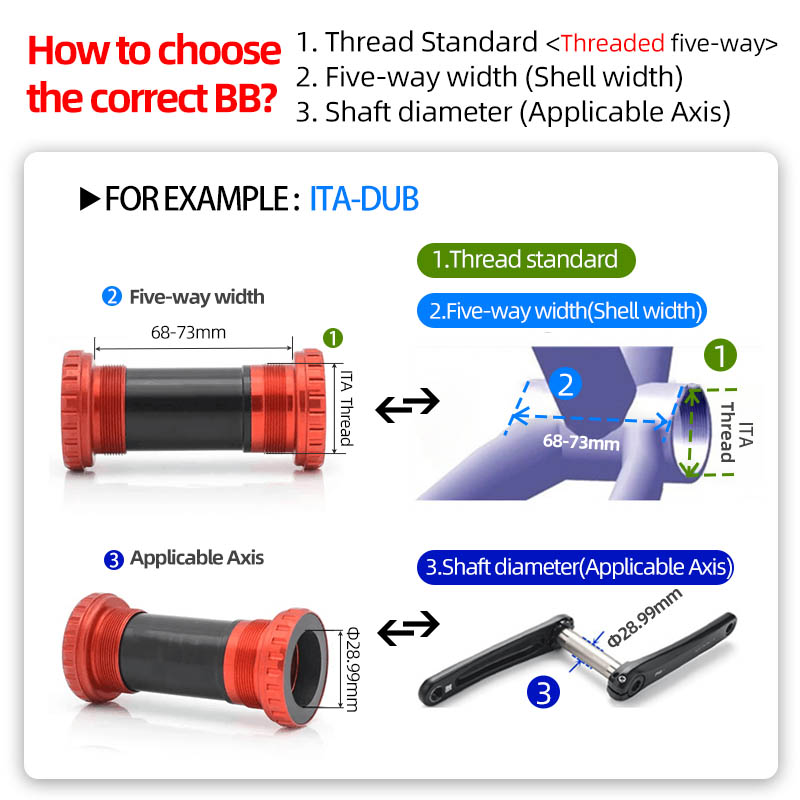

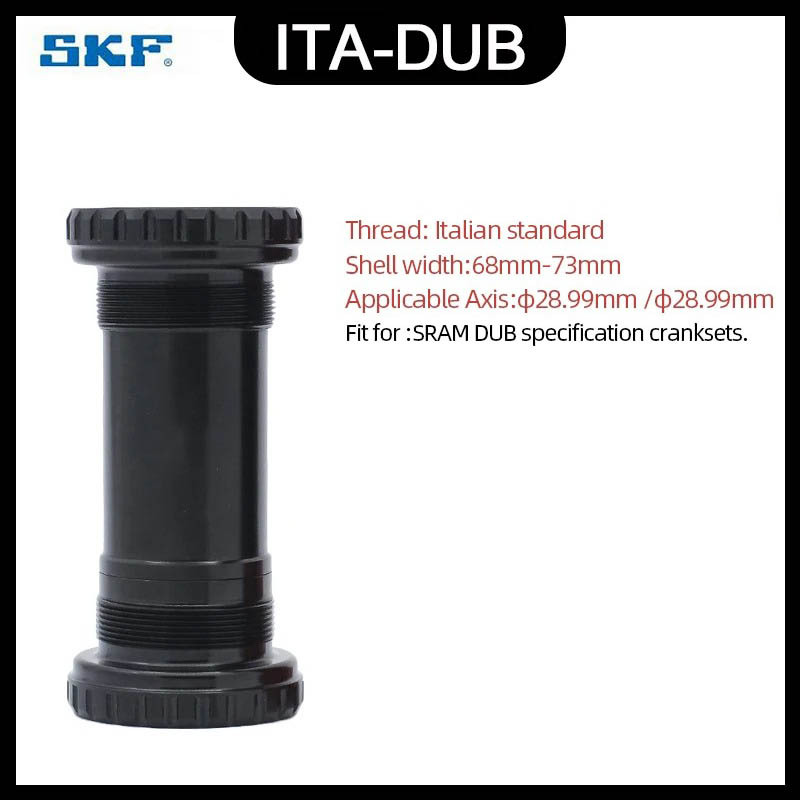

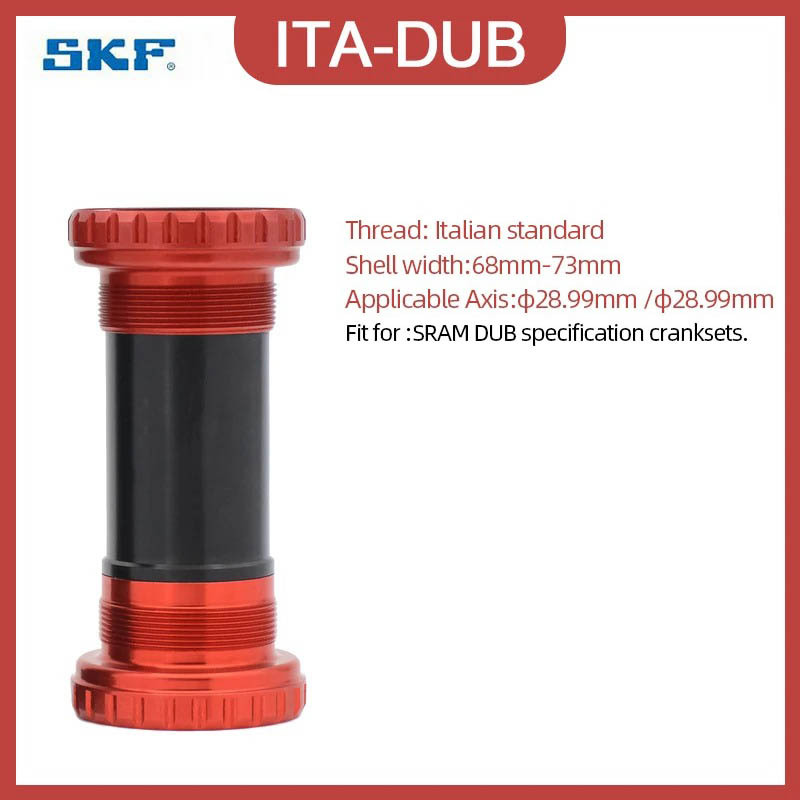

①Shell width:68mm-73mm
②Applicable Axis:φ28.99mm /φ28.99mm
③Thread: Italian thread
Fit for : SRAM DUB specification cranksets.
Adaptive Wrench: 46-12(24) notch

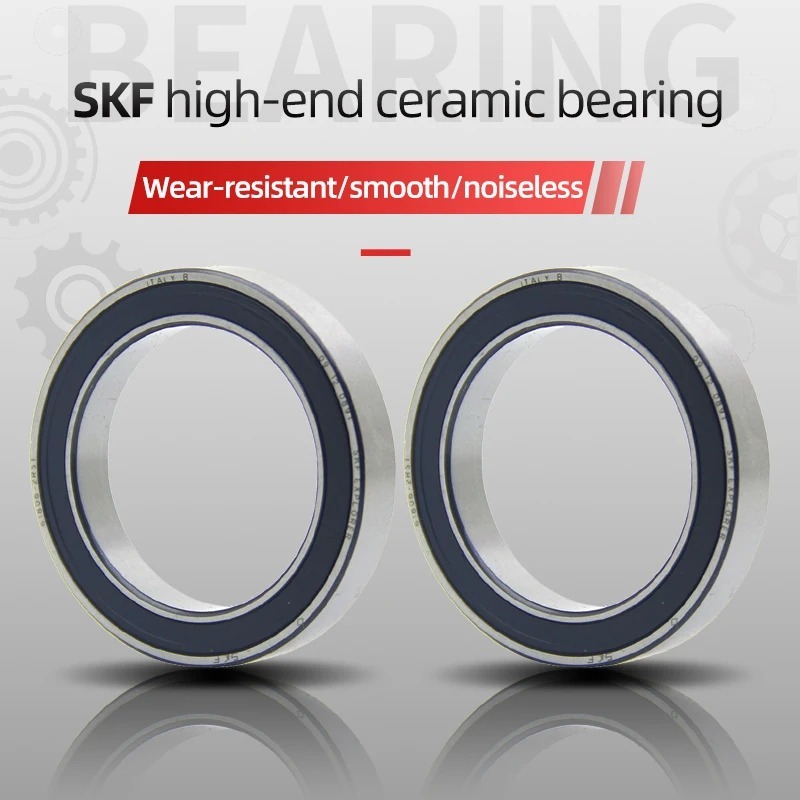

About SKF bearings Version（SKF bearing ring + G3 silicon nitride ceramic balls）:
SKF bearings are the leader in bearing technology and manufacturing. SKF bearing rings have the advantages of higher rated load, lower noise, greatly reduced maintenance costs, and increased machine running time. Choose it, you can make the riding experience more comfortable and happy. Compared with our other bottom brackets, it has two outstanding features: ① The better wear resistance of the SKF steel ring ② The better sealing and waterproofing of the bearings. and for the ceramic bearings we use non-skf brand silicon nitride ceramic beads, making our skf bottom bracket more cost-effective.
About G3 Silicon Nitride Ceramic Beads :
It highlights the higher strength and impact resistance characteristics of Si3N4, making it better than metal bearings, Secondly, their better wear resistance and heat resistance, light weight and smoothness, making the cranksets smoother during rotation. Be loved and recommended by cycling enthusiasts.reducing friction.

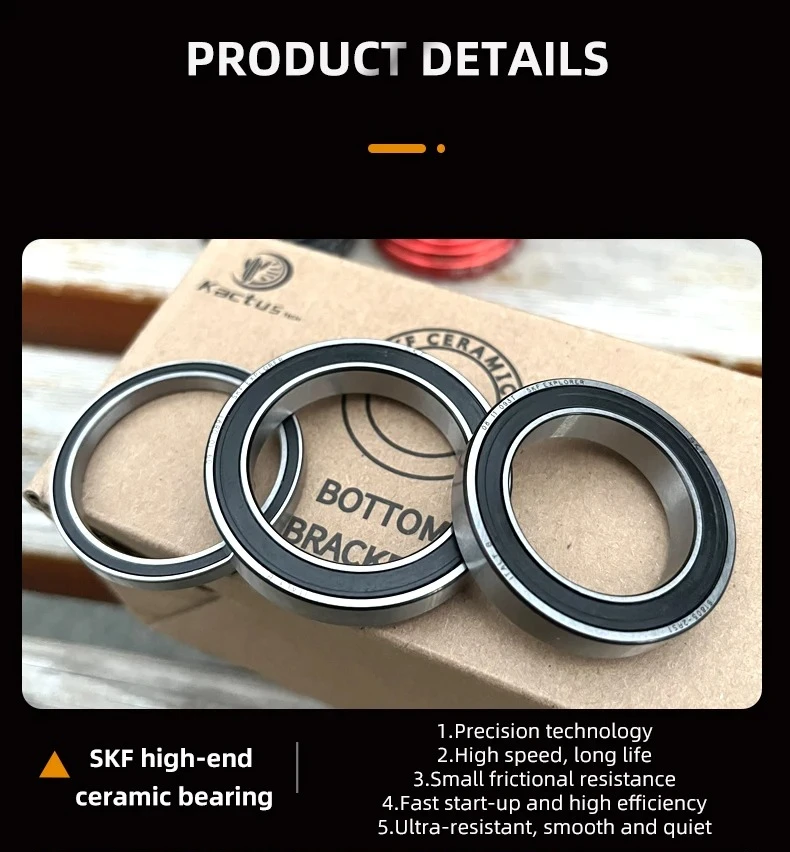

SKF bearing rings are more wear-resistant
Precision technology
High speed, long life
Small frictional resistance
Fast start-up and high efficiency
Ultra-resistant, smooth and quiet

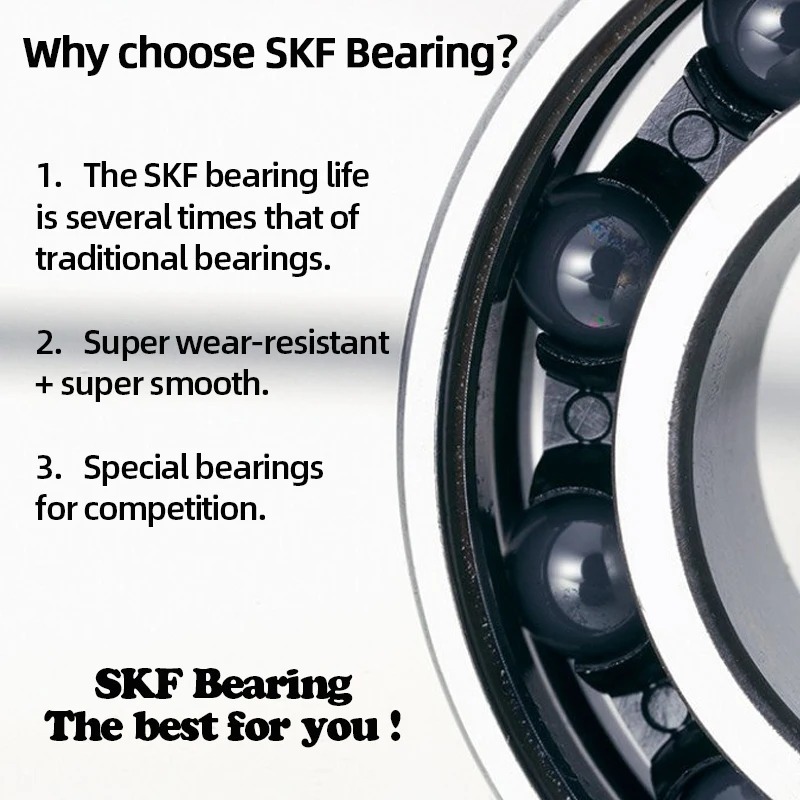

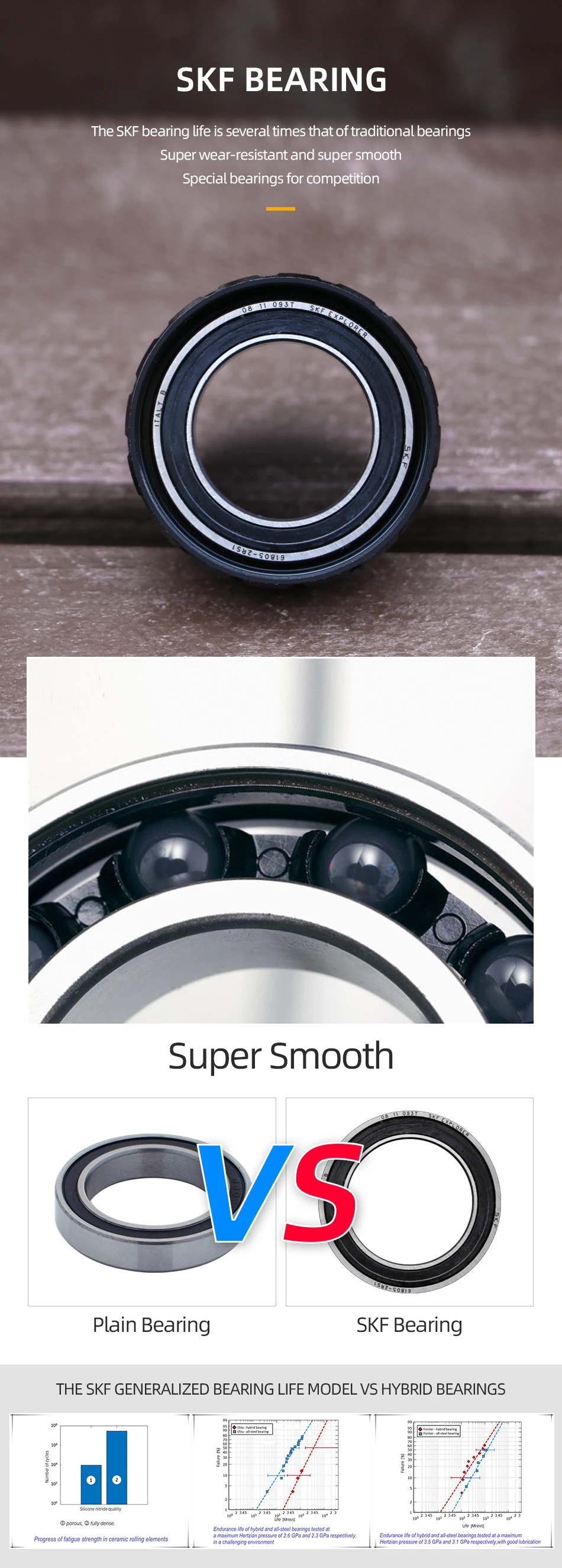

SKF BEARING
The SKF bearing life is several times that of traditional bearings
Super wear-resistant and super smooth
Special bearings for competition

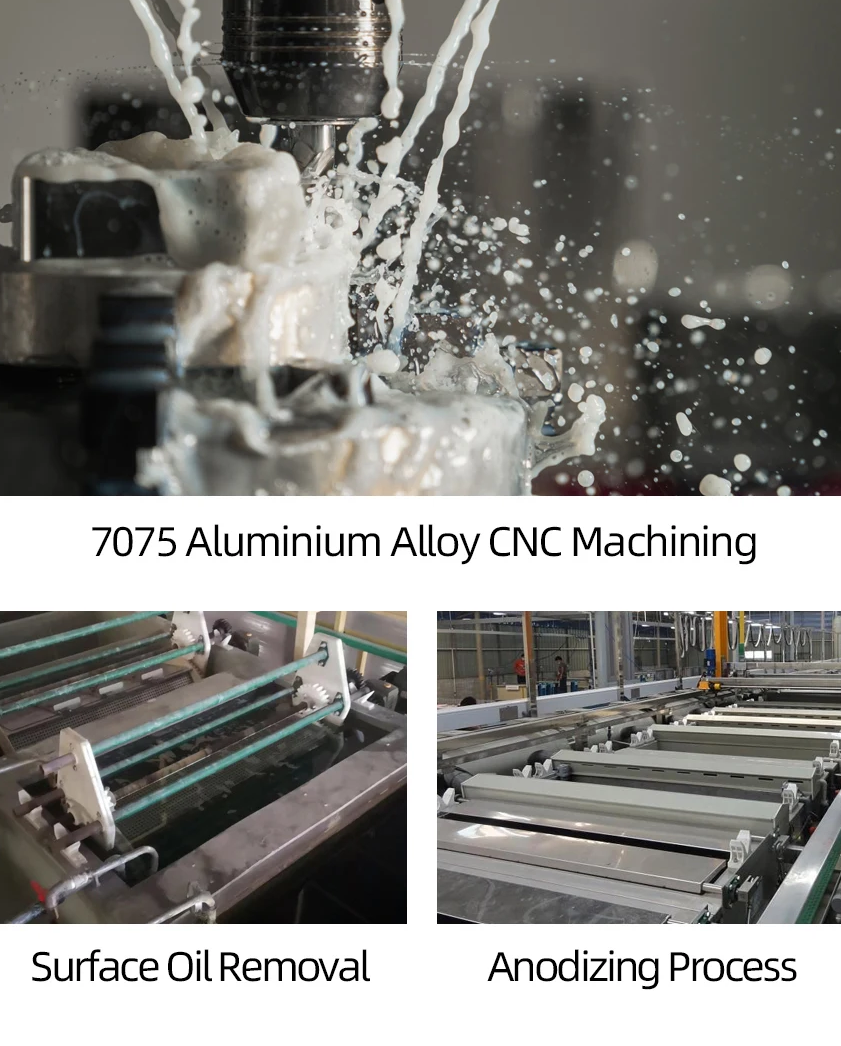

CNC Machining Process
Heat treated CNC process Guaranteed strength Lightweight at the same time.

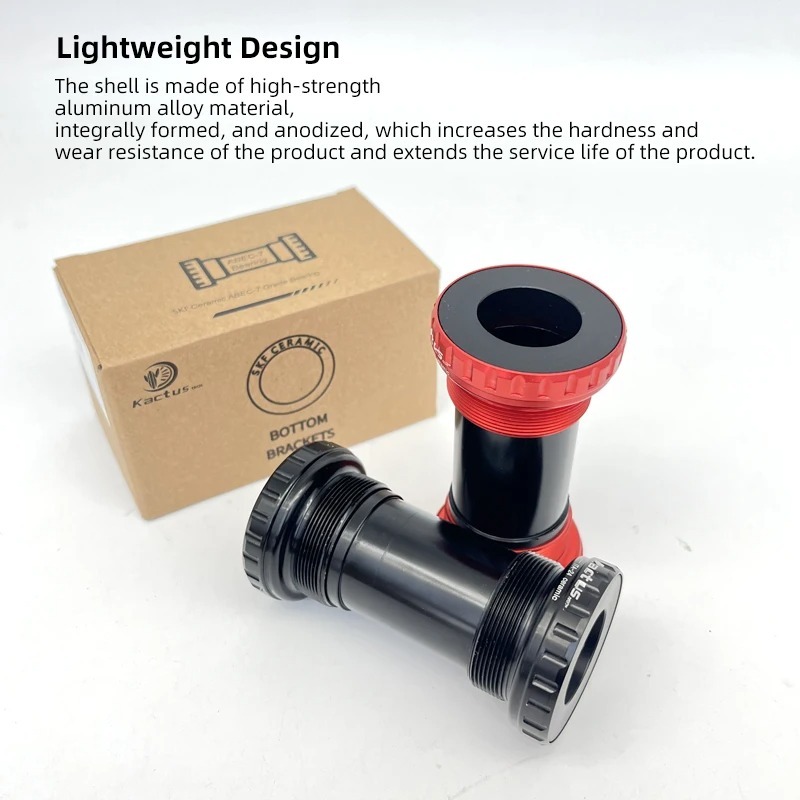

Lightweight Design
The shell is made of high-strength aluminum alloy material, integrally formed,and anodized, which increases the hardness and wear resistance of the product and extends the service life of the product.
Free Adjustable Pads
The more we think, the more convenient it will be for riders.
We will give away spacers in different bottom bracket packages. The function is to fill the gap between the crank and the bottom bracket of some bike models when installing, so it is not a necessity for every customer. We only give it as a gift.

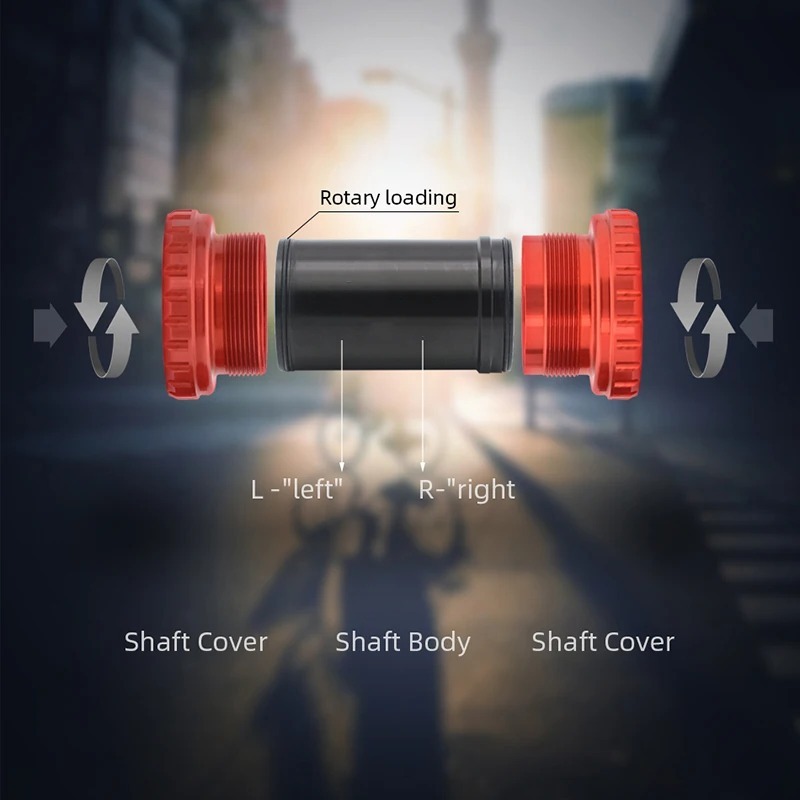

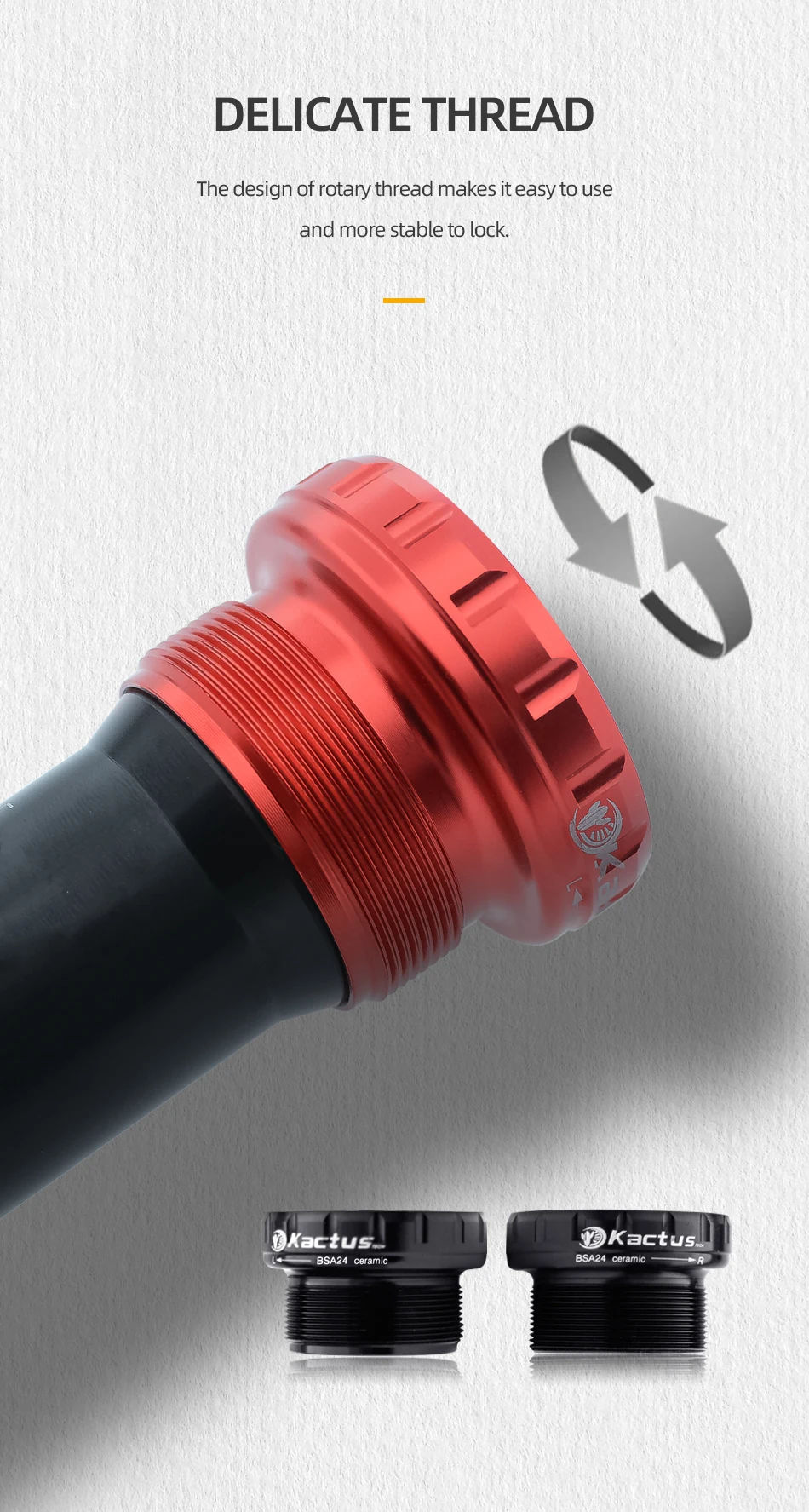

DELICATE THREAD
The design of rotary thread makes it easy to use and more stable to lock.

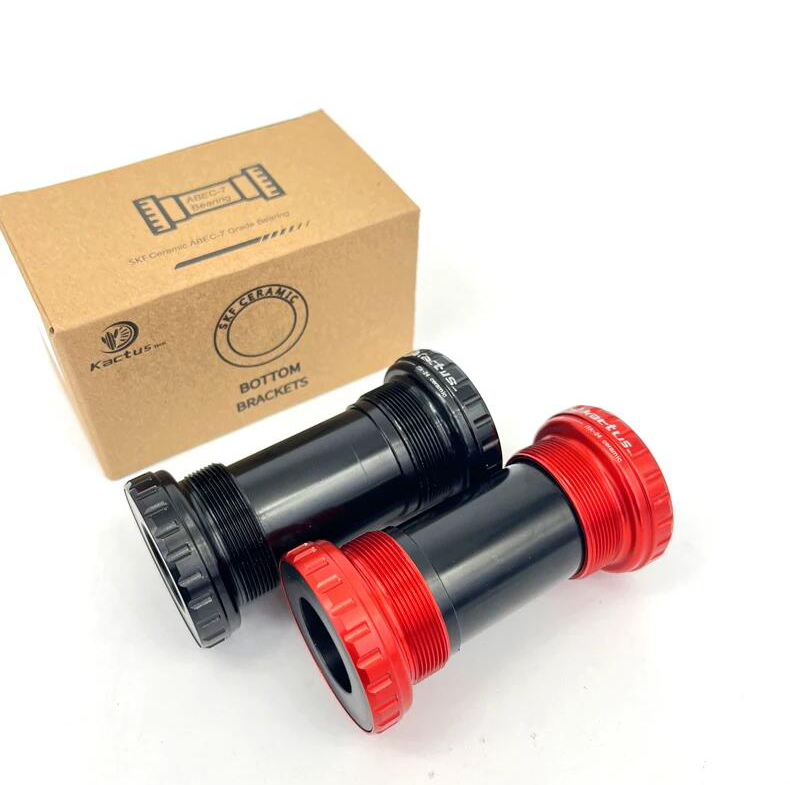

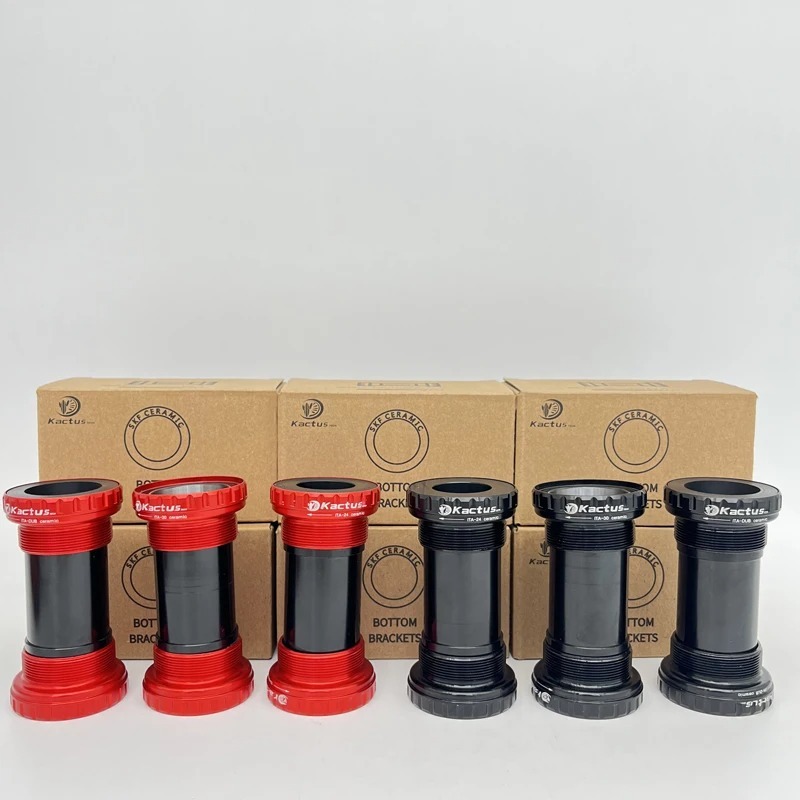

Packaging display
