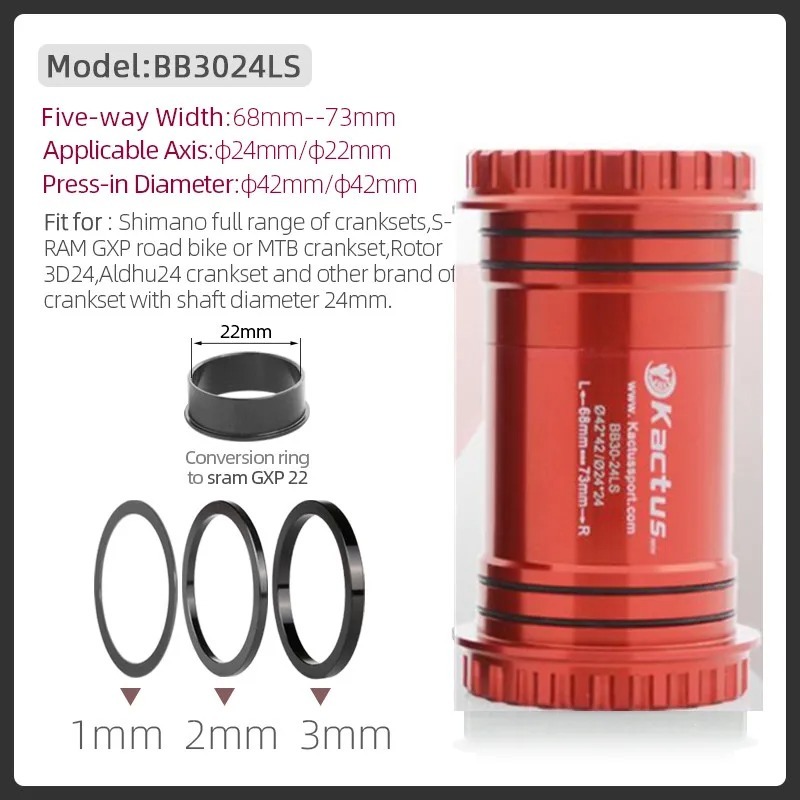

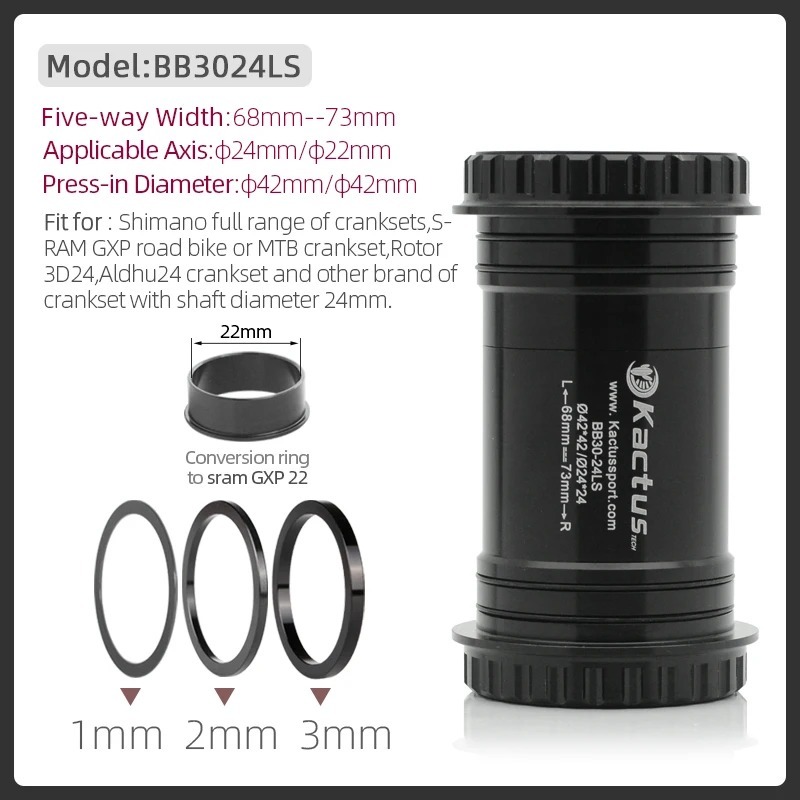

Ceramic Bearing Bottom Brackets BB3024-LS Ceramic Bearing Central Movement Shell 68-73mm fit for Shimano 24mm Crankset Bike Parts

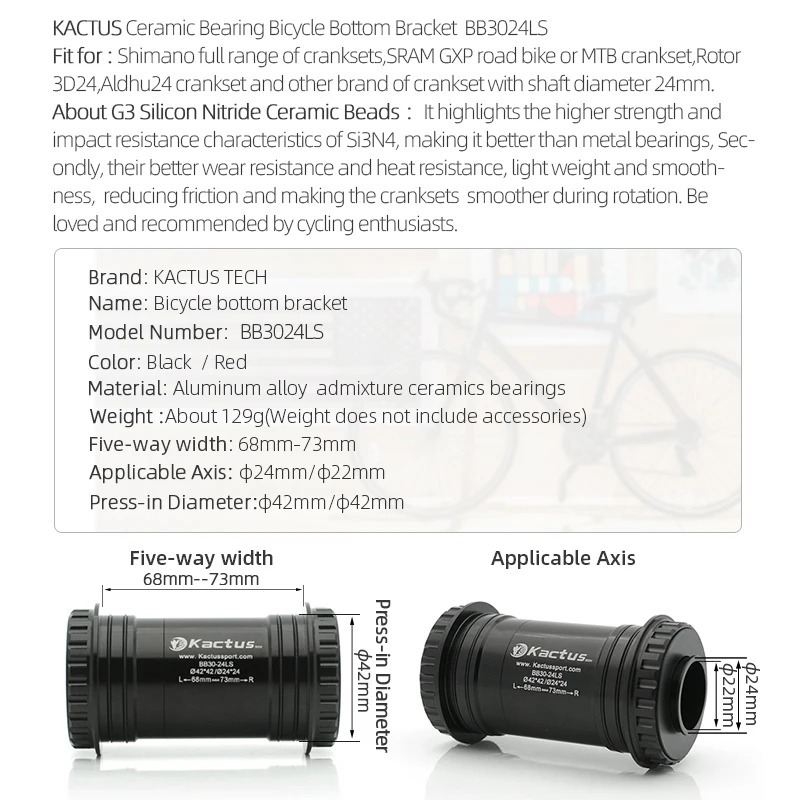

KACTUS:Ceramic Bearing Bicycle Bottom Bracket BB3024-LS
Fit for :Shimano full range of cranksets,SRAM GXP road bike or MTB crankset,Rotor 3D24,Aldhu24 crankset and other brand of crankset with shaft diameter 24mm.
Brand:KACTUS TECH
Name:Bicycle Bottom Bracket
Model Number:BB3024-LS
Bottom Bracket Type: Ceramic bearing, press-fit
Press-Fit Diameter: 42mm / 42mm
Shell Width (Five-Way Width): 68–73mm
Applicable Spindle Diameter: 24mm (Shimano, Rotor, Aldhu24) / 22mm (SRAM GXP step)
Bearing Material: G3 silicon nitride ceramic beads + hardened steel races
Shell Material: Aluminum alloy, CNC heat-treated, anodized
Weight: ~129g (excluding spacers)
Color Options: Black, Red
Special Features: Dust cover, built-in rubber seal, laser engraved model
Compatible Cranksets: Shimano full range, SRAM GXP road/MTB, Rotor 3D24, Aldhu24, and other 24mm spindle cranks

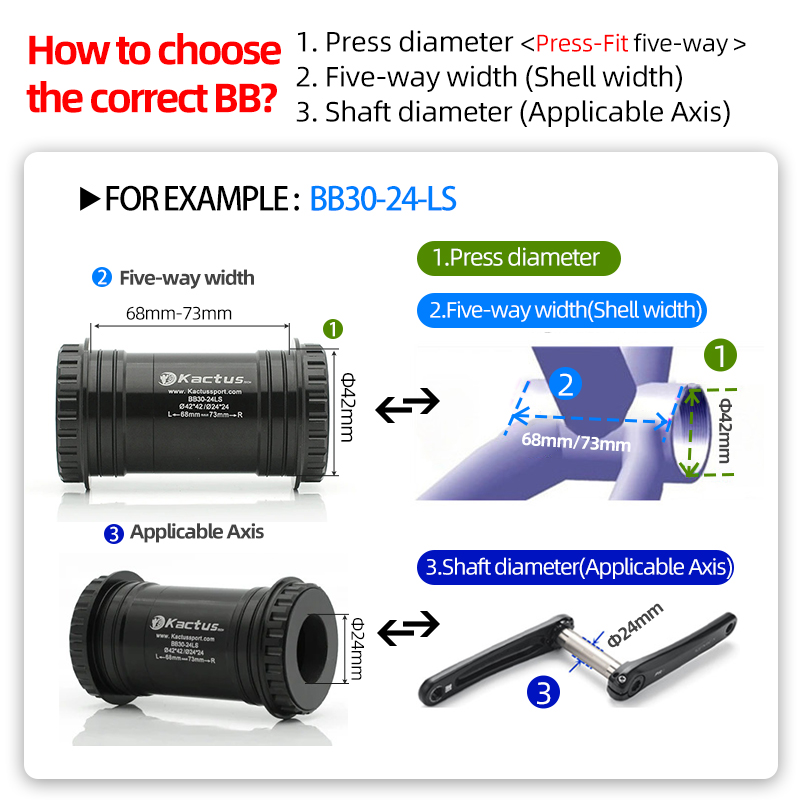

How to choose the correct bottom bracket ?
① Press diameter < Press-Fit five-way >
② Five-way width (Shell width)
③ Shaft diameter (Applicable Axis)

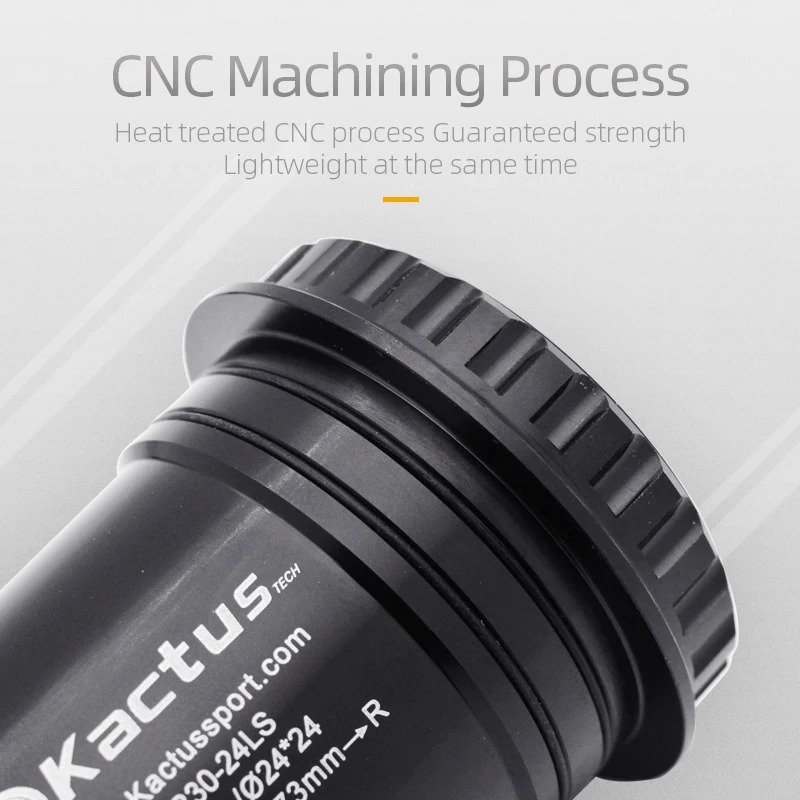

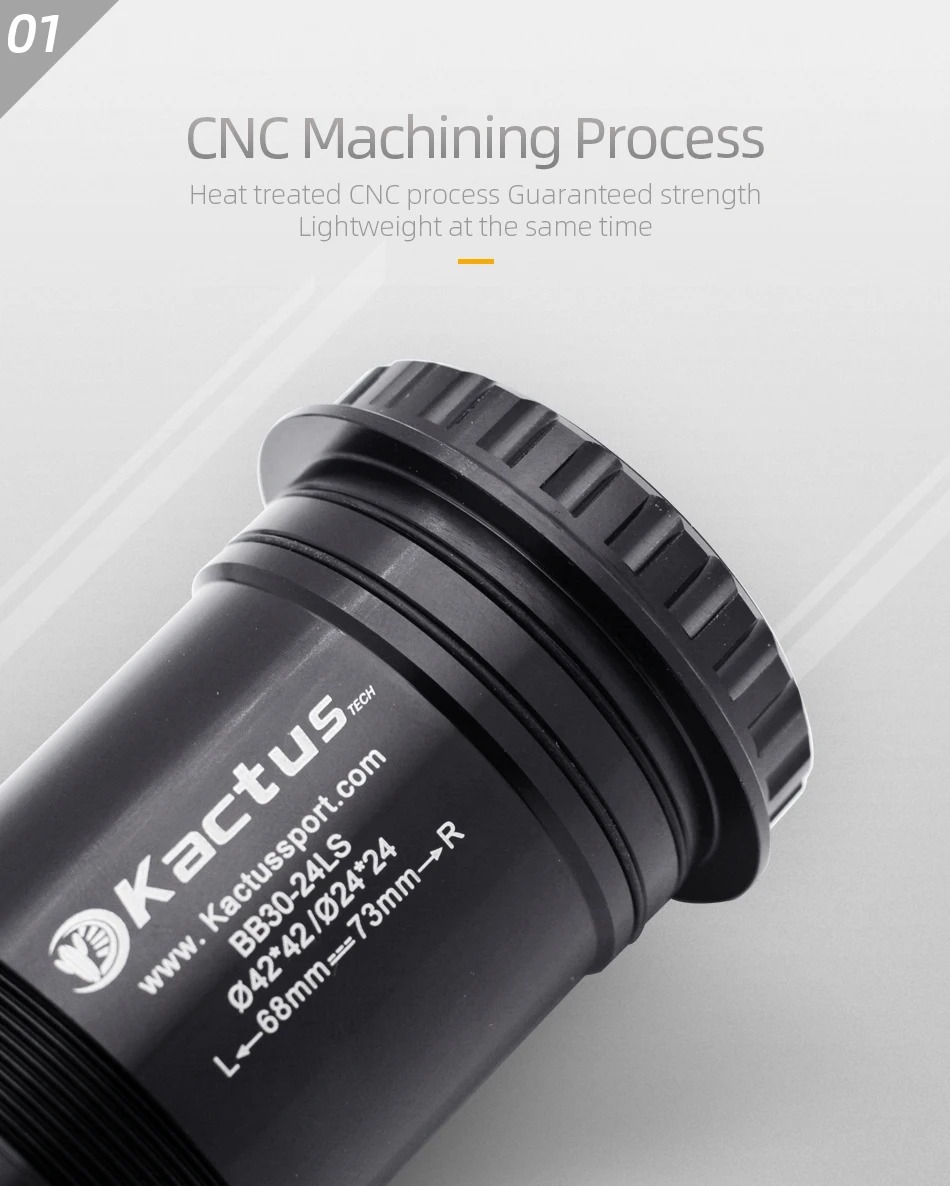

01 | CNC Machining Process
Heat treated CNC process Guaranteed strength Lightweight at the same time.

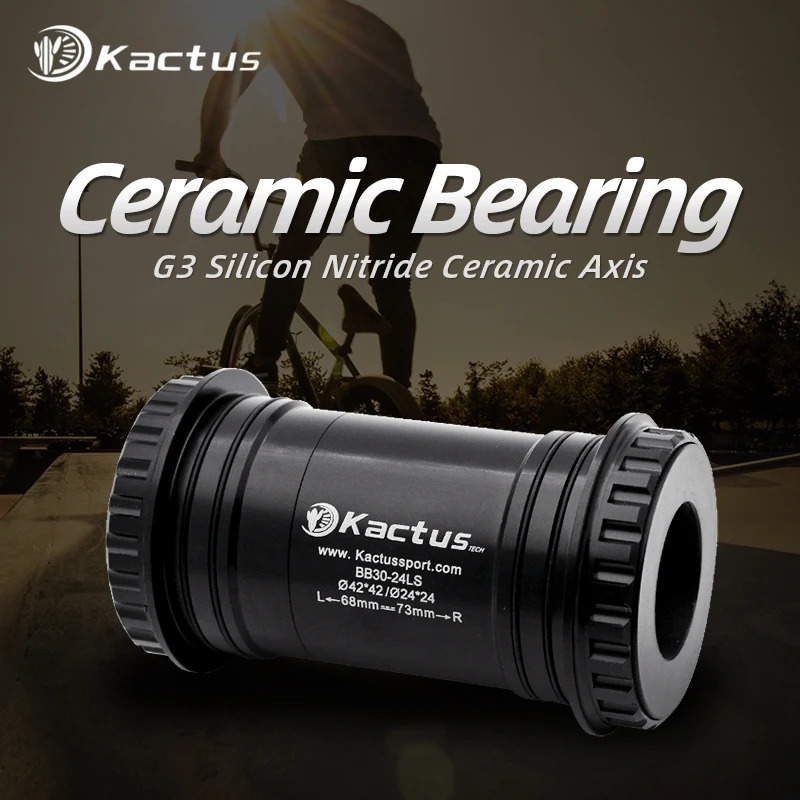

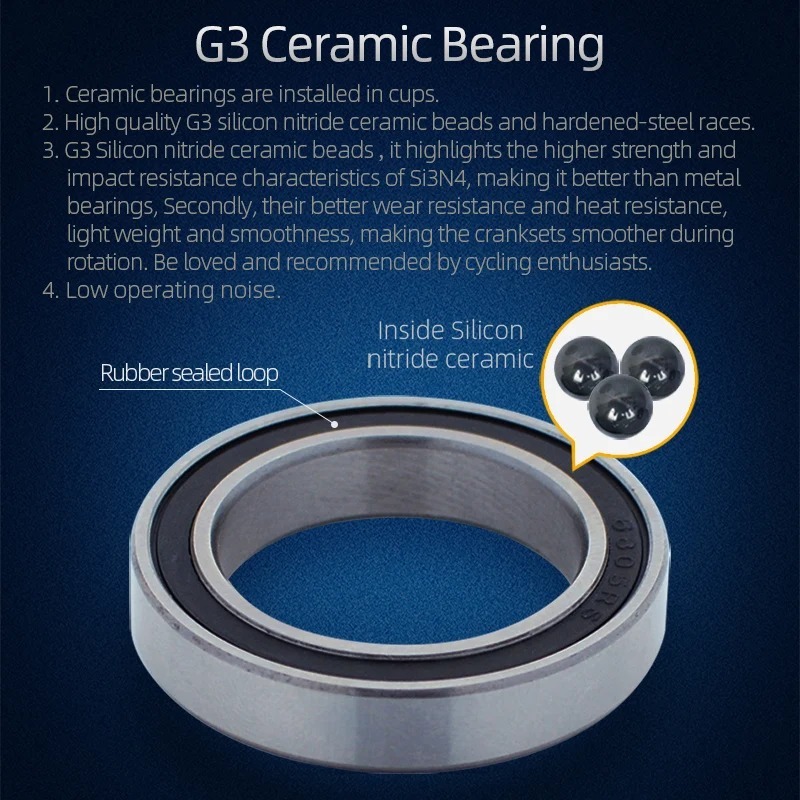

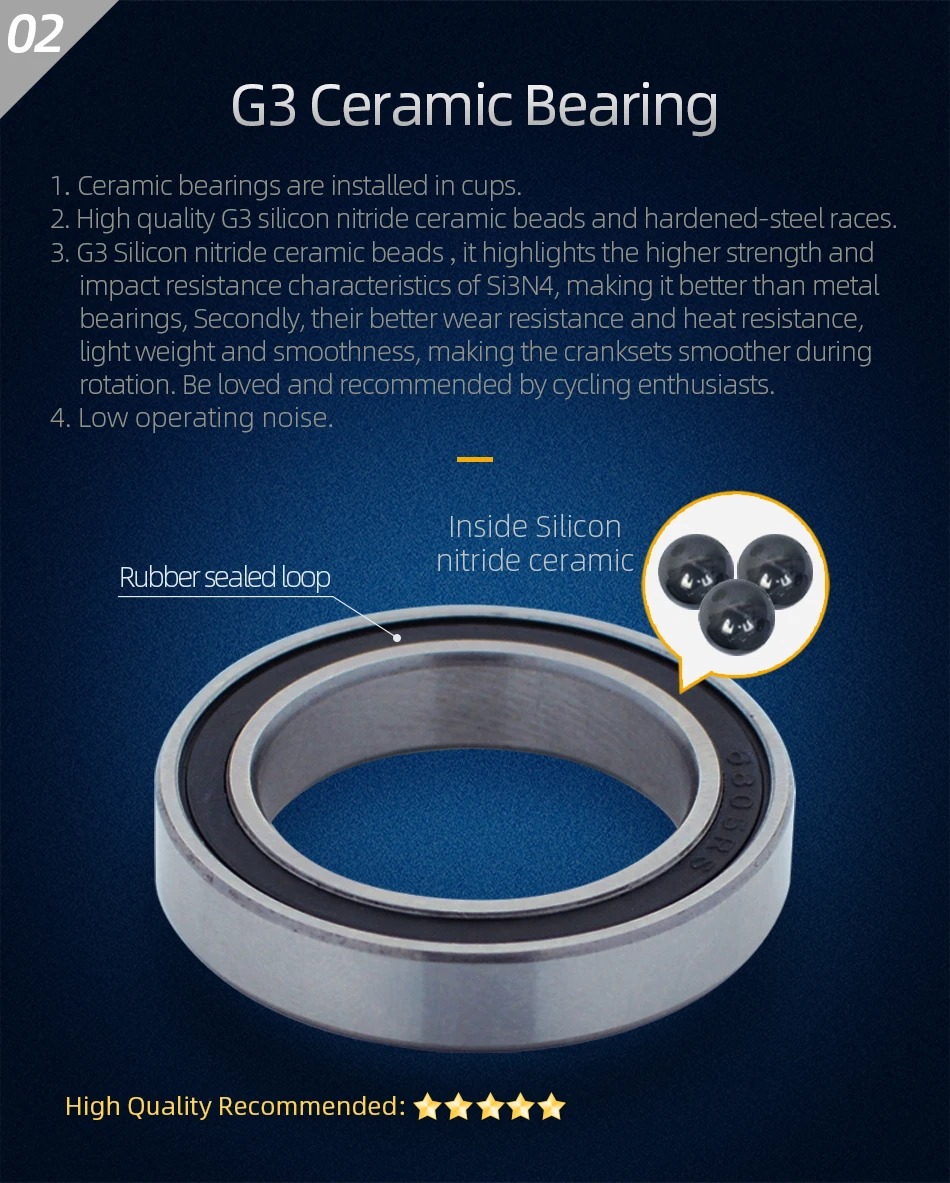

02 | G3 Ceramic Bearing
1.Ceramic bearings are installed in cups.
2.High quality G3 silicon nitride ceramic beads and hardened-steel races.
3.G3 Silicon nitride ceramic beads ,it highlights the higher strength and impact resistance characteristics of Si3N4, making it better than metal bearings, Secondly, their better wear resistance and heat resistance, lightweight and smoothness,making the cranksets smoother during rotation. Be loved and recommended by cycling enthusiasts.
4.Low operating noise.

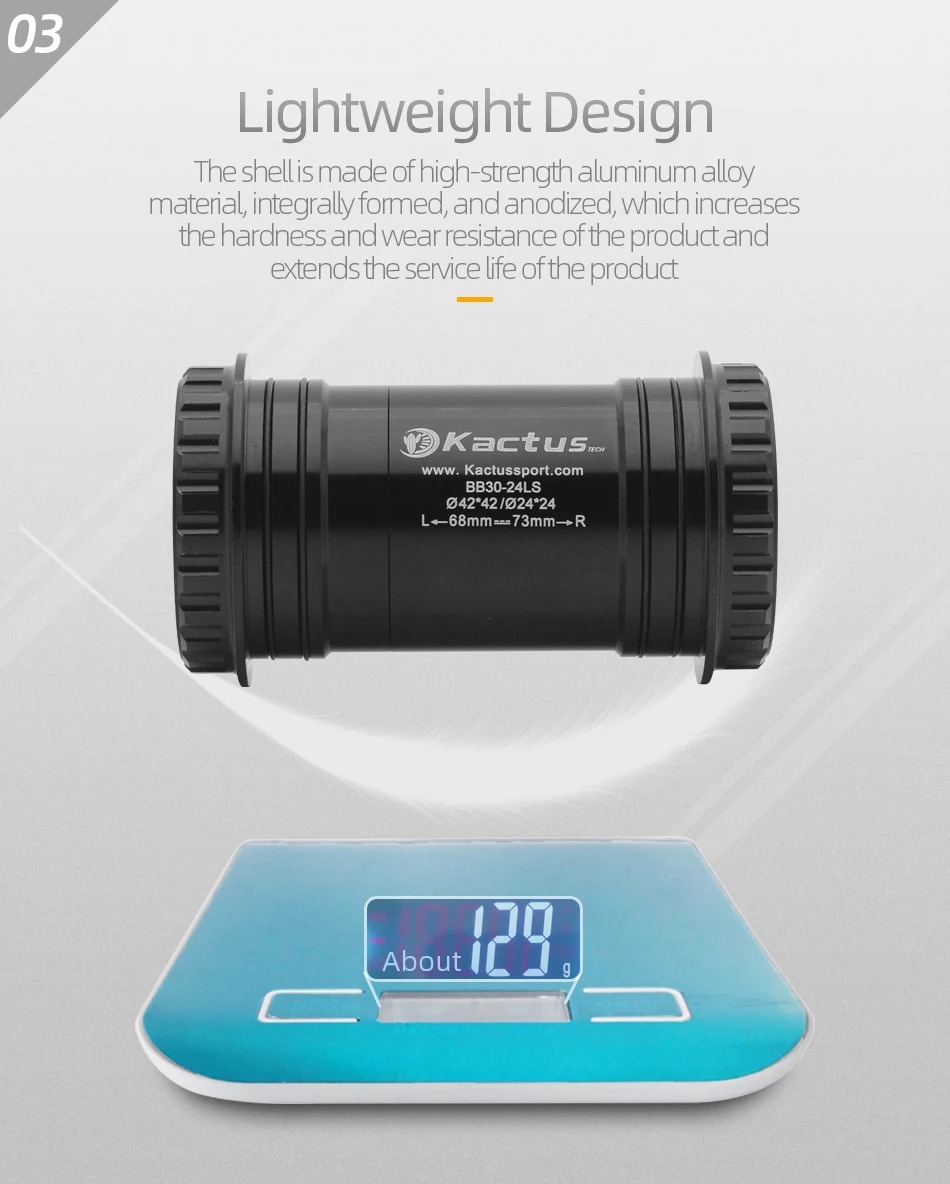

03 | Lightweight Design
The shell is made of high-strength aluminum alloy material, integrally formed,and anodized, which increases the hardness and wear resistance of the product and extends the service life of the product.

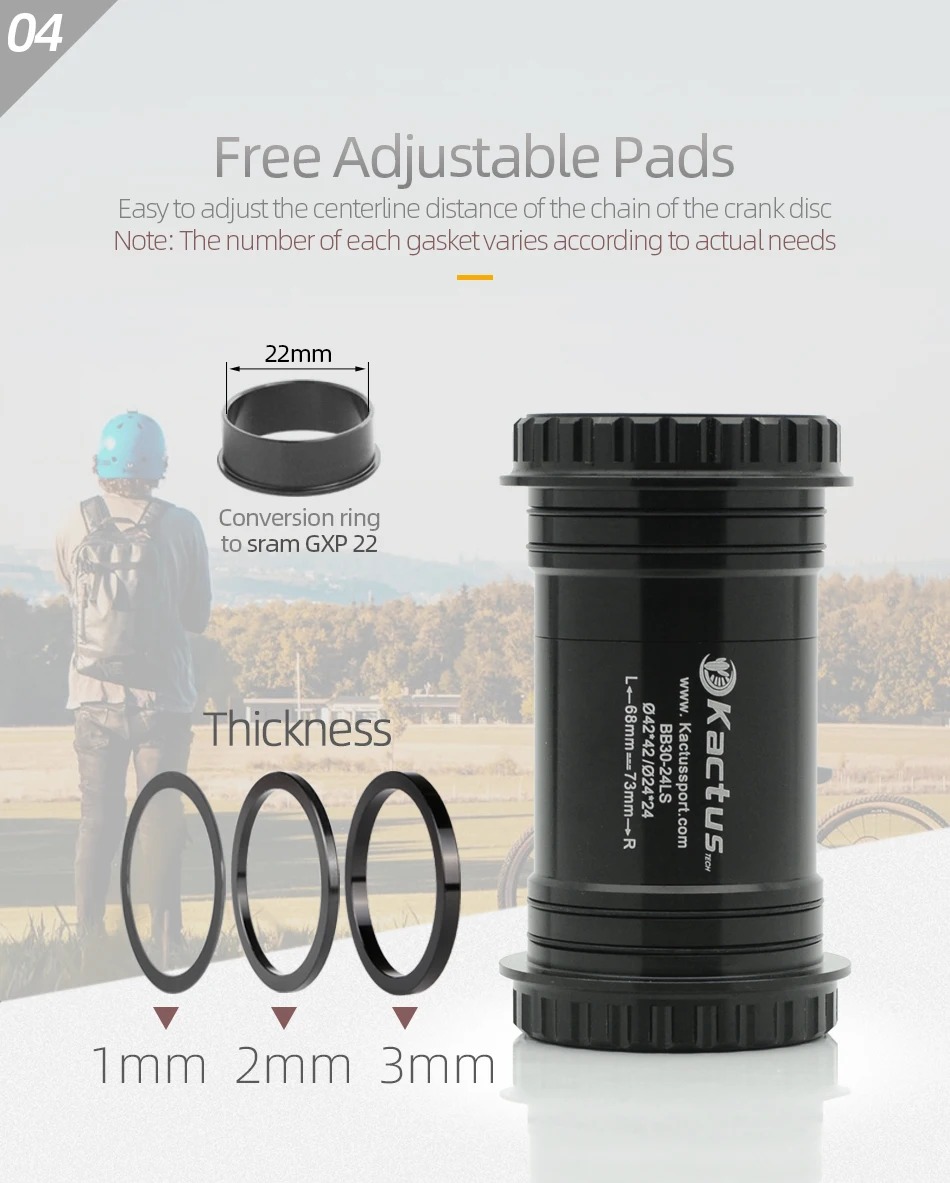

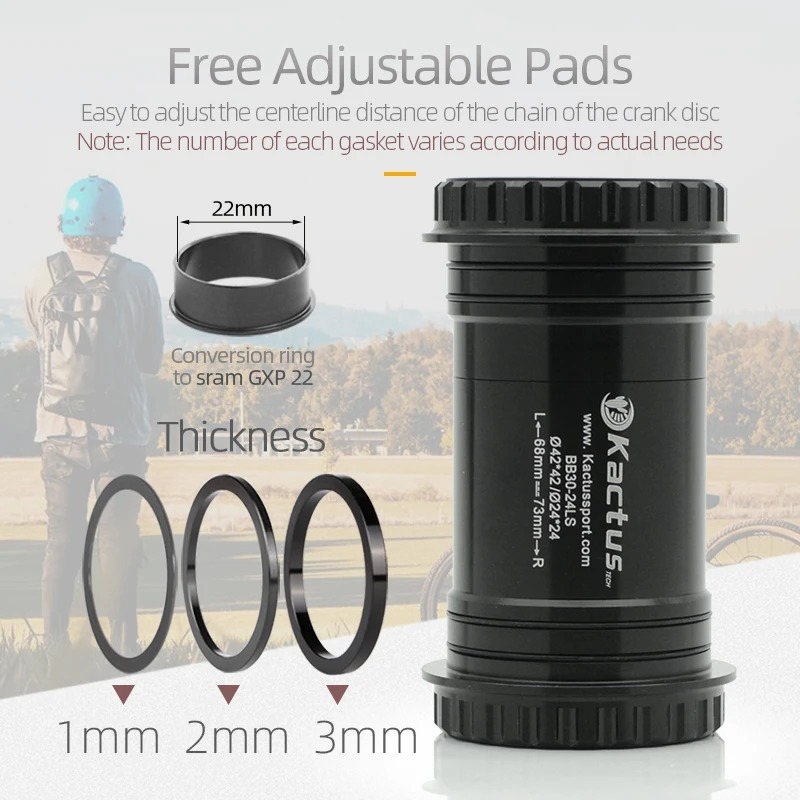

04 | Free Adjustable Pads
The more we think, the more convenient it will be for riders.
We will give away spacers in different bottom bracket packages. The function is to fill the gap between the crank and the bottom bracket of some bike models when installing, so it is not a necessity for every customer. We only give it as a gift.

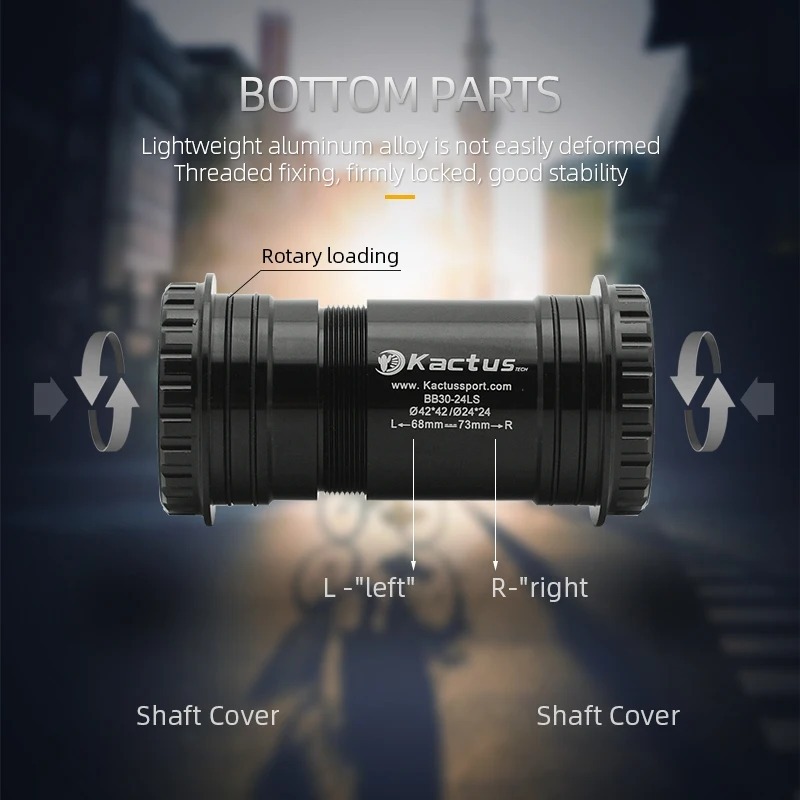

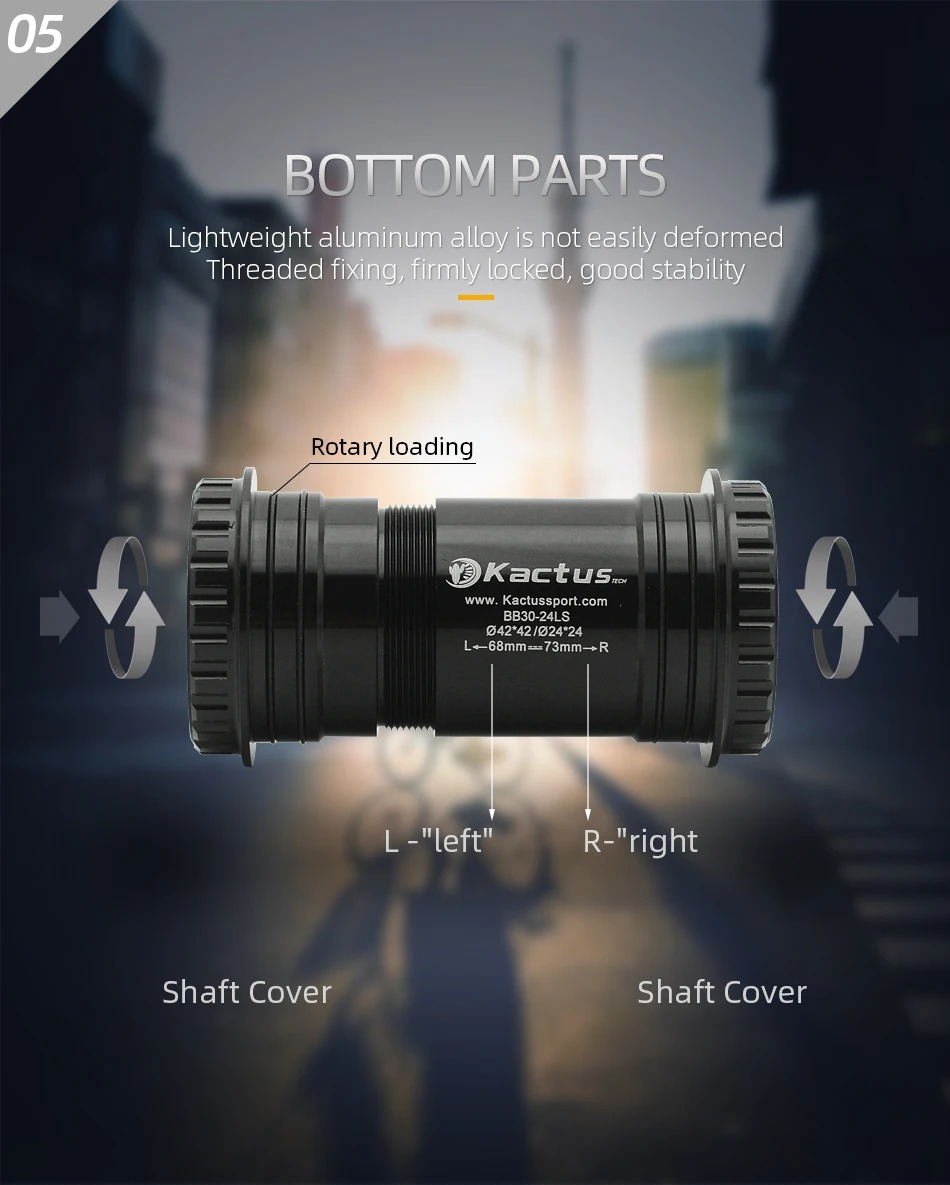

05 | Aluminum alloy shell
Lightweight aluminum alloy is not easily deformed. Improve the overall grade.
Built-in rubber ring design to prevent dust from entering.

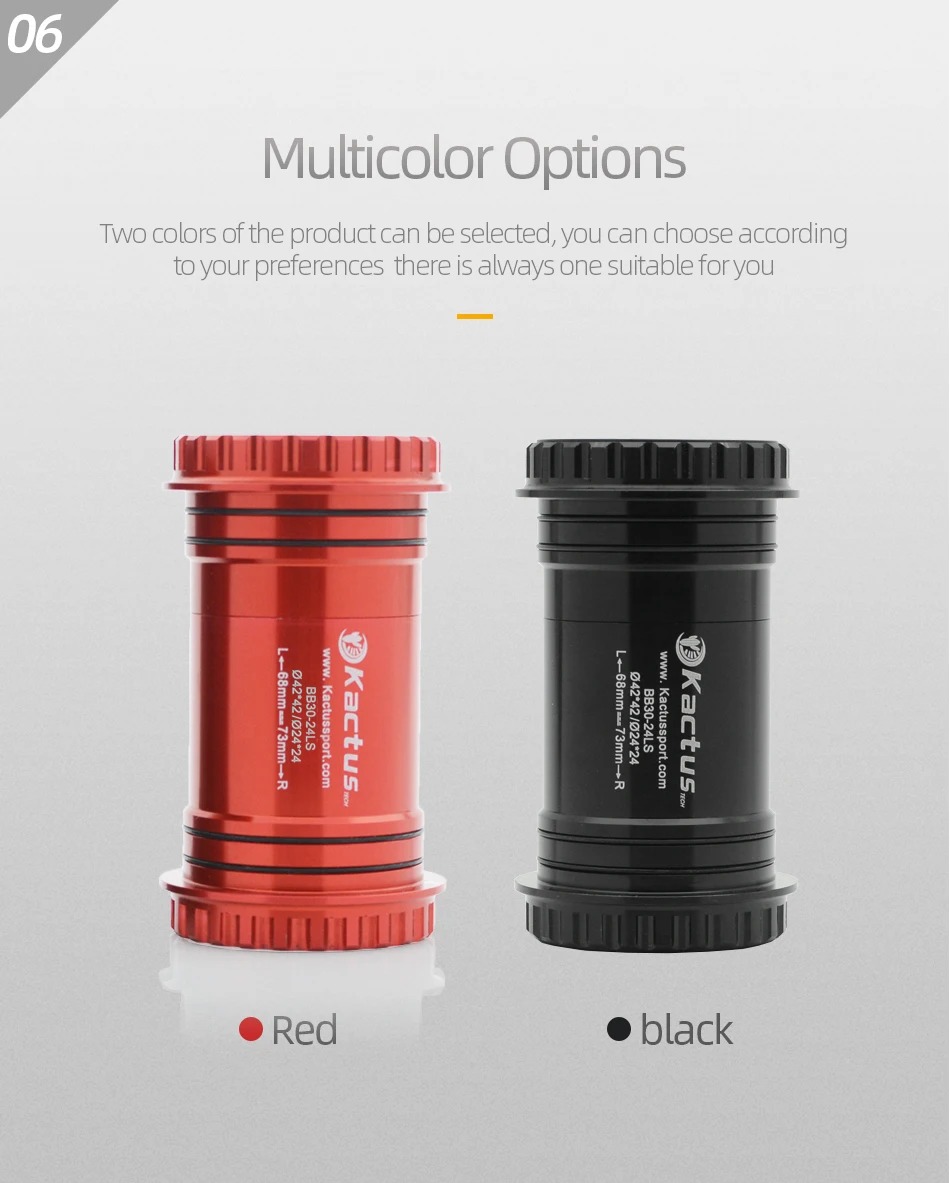

06 | Multicolor Options
Two colors of the product can be selected, you can choose according to your preferences there is always one suitable for you.

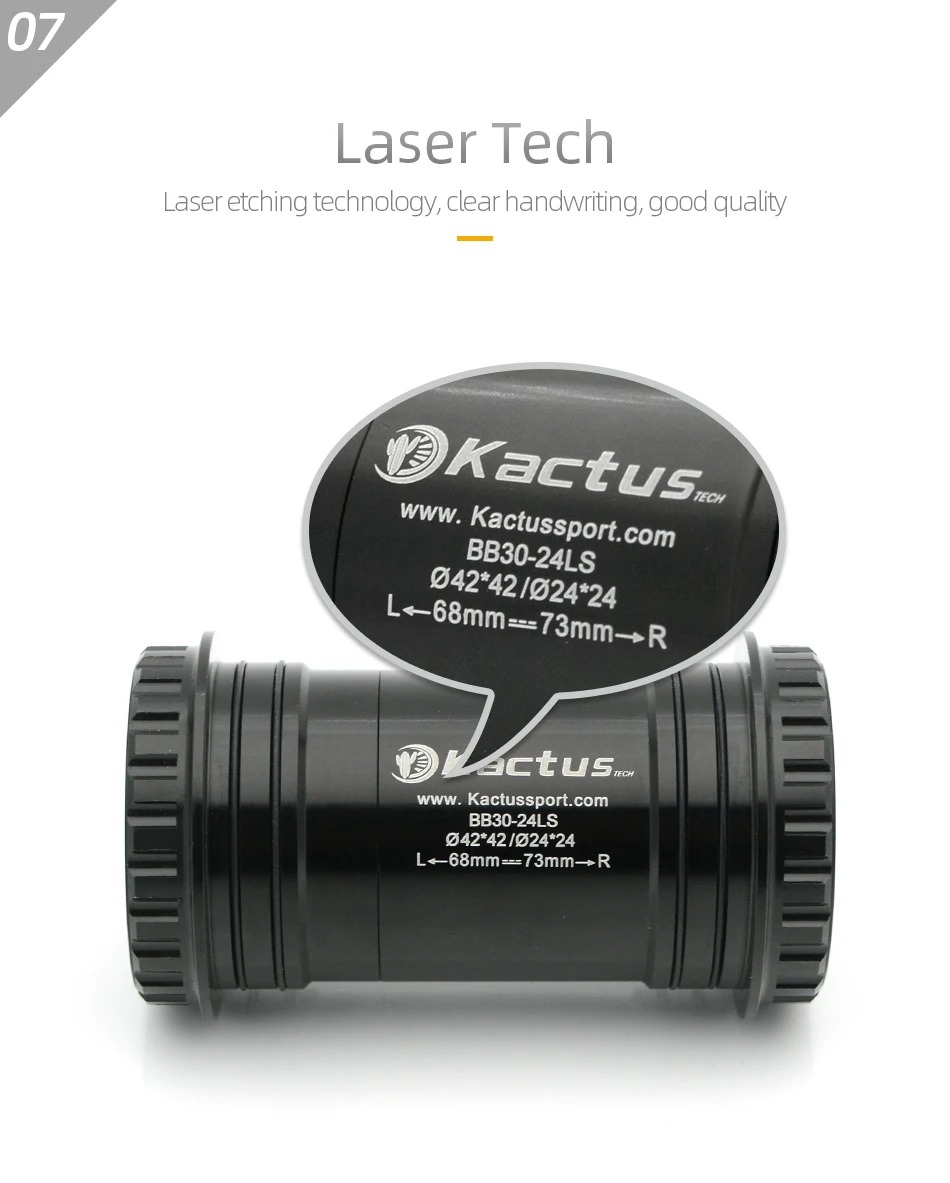

07 | Laser engraved model，easier for you to use.
This detail hopes that cyclists who have multiple spare bottom brackets in the garage can quickly identify the model.

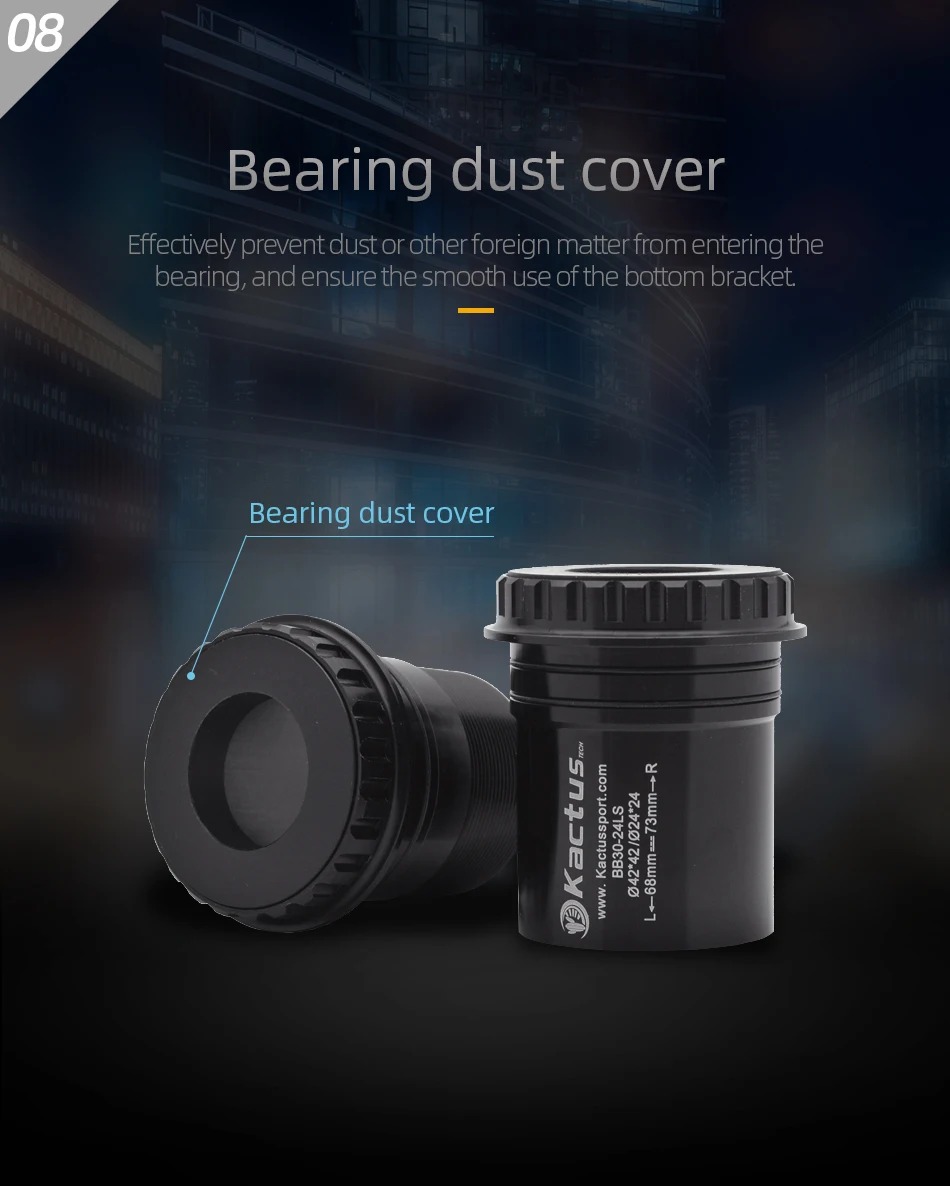

08 | Bearing dust cover
Effectively prevent dust or other foreign matter from entering the bearing, and ensure the smooth use of the bottom bracket

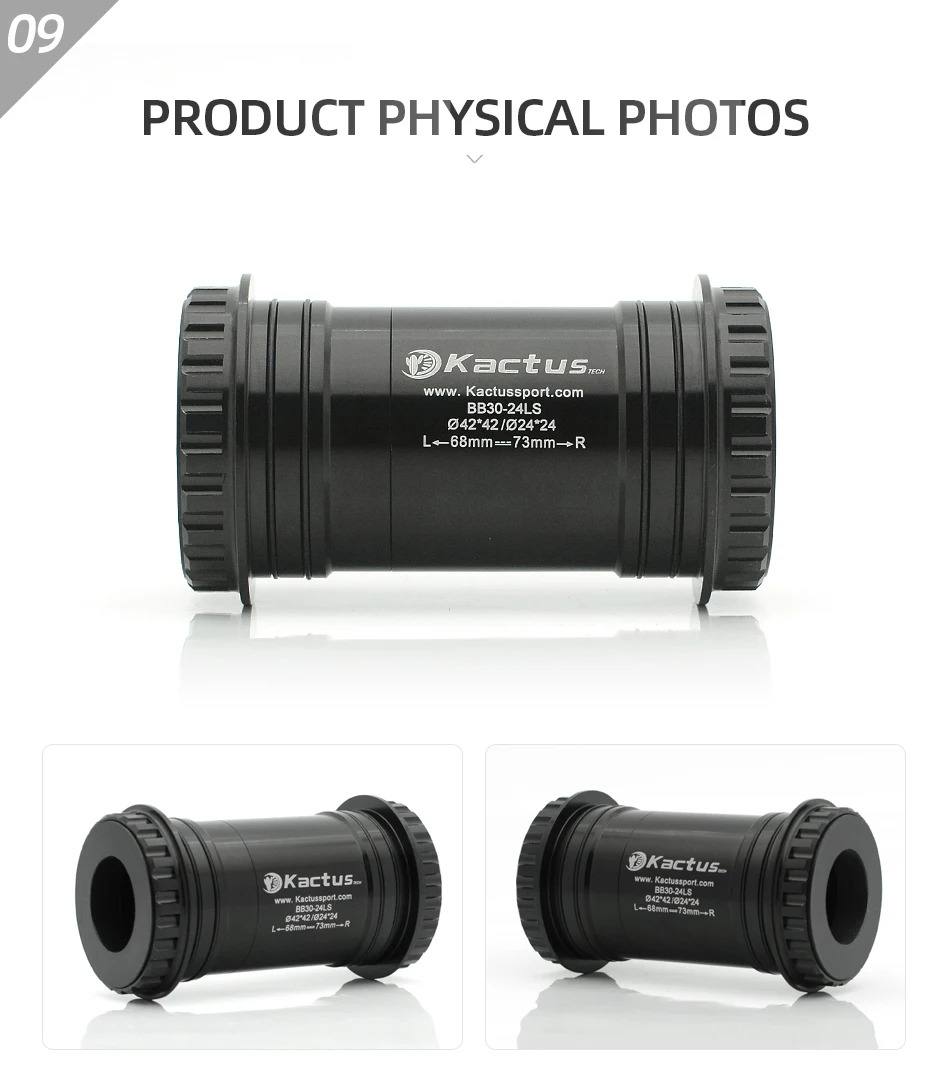

09 | Product physical photos
The product is taken in kind and displayed from multiple angles, showing you more different product scenarios.

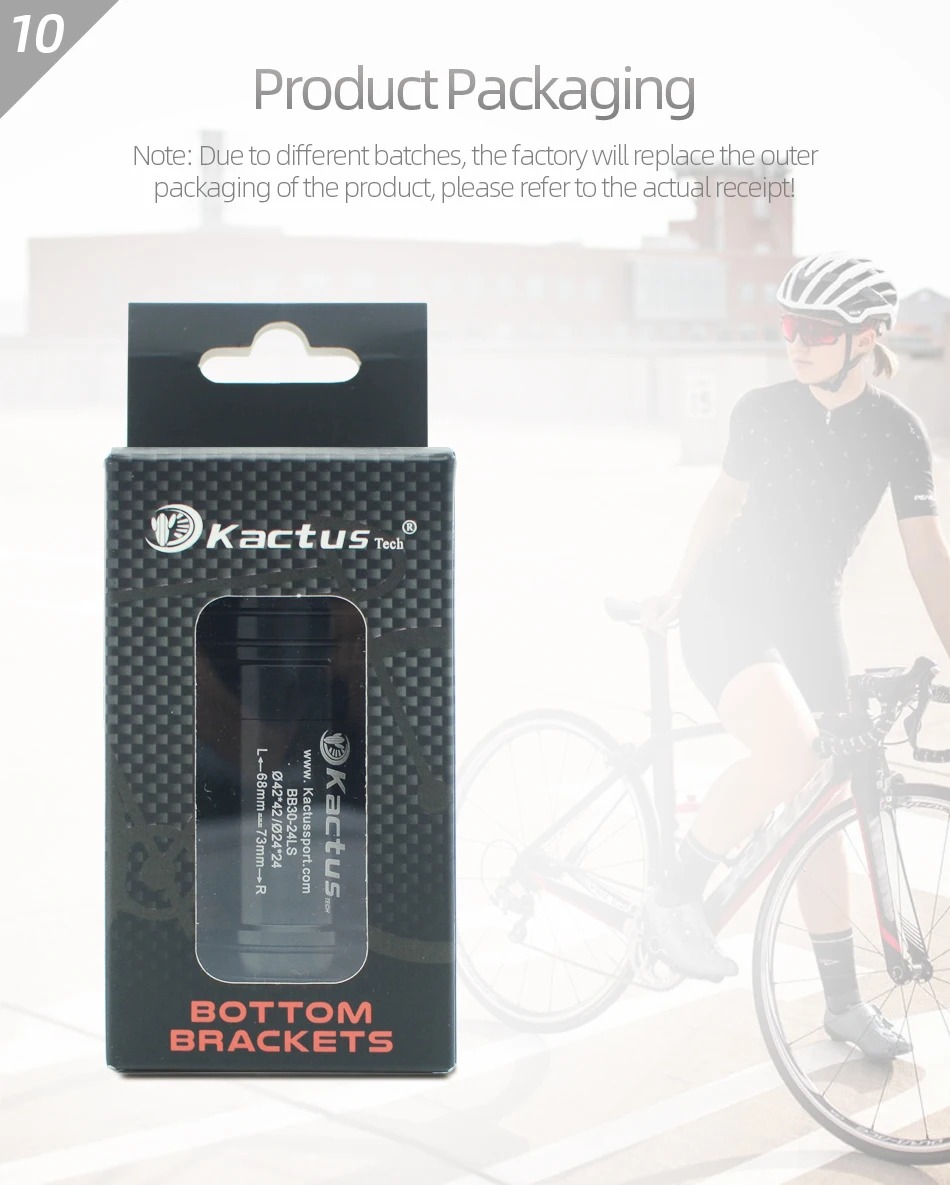

010 | Product Packaging
Note: Due to different batches, the factory will replace the outer packaging of the product, please refer to the actual receipt!
